Mehul Nickel Alloys, a trusted manufacturer and supplier based in Dubai, UAE, proudly offers AWS Class ERNiCrMo-13 MIG and TIG Filler Welding Wire and Rod. Renowned for its excellent resistance to oxidation and corrosion in extreme environments, this high-performance welding wire is ideal for joining nickel-chromium-molybdenum alloys. With a commitment to quality and customer satisfaction, Mehul Nickel Alloys ensures that each product meets the highest industry standards, providing reliable solutions for your most demanding welding applications.

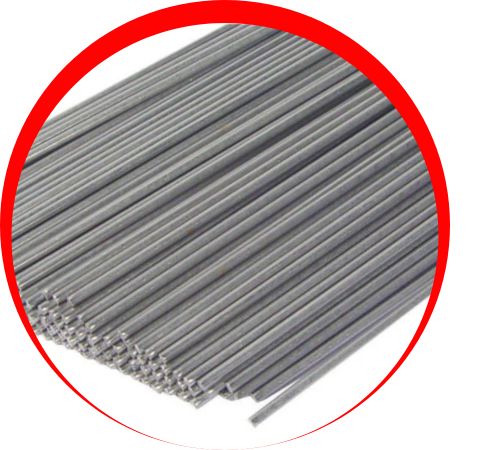

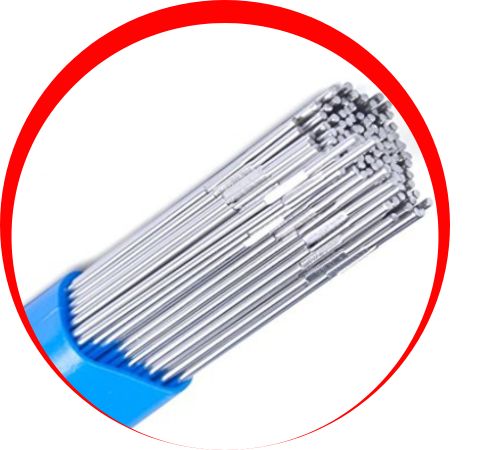

AWS class ERNiCrMo-13 MIG and TIG Filler Welding Wire and Rod Made primarily of nickel, chromium and molybdenum, with a balanced combination of steel and tungsten These materials provide exceptional corrosion resistance, especially in harsh environments such as seawater and chemicals. The filler metal provides high mechanical strength, excellent ductility and high temperature stability. Its welds are crack-resistant, making it ideal for joining similar alloys or dissimilar metals in complex applications including the oil, gas, marine and petrochemical industries
| Classification | AWS A5.14, ERNiCrMo-13 |

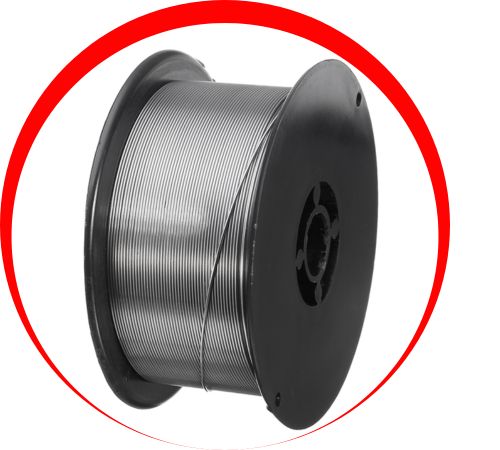

| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNiCrMo-13 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Fe | P | S | Si | Cu | Ni | Co | Cr | Mo | V | W | Other |
| 0.02 | 1.0 | 4.0-7.0 | 0.04 | 0.03 | 0.08 | 0.50 | Rem | 2.5 | 14.5-16.5 | 15.0-17.0 | 0.35 | 3.0-4.5 | 0.5 |
| Tensile Strength MPa(ksi) | Yield Strength MPa(ksi) | Elongation % | |
|---|---|---|---|
| AWS requirement | 760(110) | Not specified | Not specified |
| Typical results as welded | 700(102) | 400(58) | 30 |
At Mehul Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERNiCrMo-13 MIG and TIG Filler Welding Wire and Rod in Dubai, UAE, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the UAE, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
The AWS class ERNiCrMo-13 MIG and TIG Filler Welding Wire and Rod is widely used in applications where exceptional corrosion resistance and mechanical strength are critical. Ideal for welding nickel-chromium-molybdenum alloys especially in harsh chemicals, seawater, or high-temperature environments This filler metal is commonly used in the oil, gas and marine chemical industry , including incorporation into pipes, tanks and other products made from the same alloys Turns out its versatility also makes it suitable for overlay applications for increased surface durability.
