Home > Nickel Alloys > AWS Class ERNiCrMo-10 MIG and TIG Filler Welding Wire and Rod
Mehul Nickel Alloys Manufacturer and Supplier in Dubai, UAE, proudly offers AWS Class ERNiCrMo-10 MIG and TIG Filler Welding Wire and Rod. This high-performance welding wire is specifically designed for applications requiring exceptional corrosion resistance and strength, making it ideal for welding nickel-chromium-molybdenum alloys. The ERNiCrMo-10 wire ensures superior weld quality and reliability, enhancing the durability of welds in aggressive environments. It is a preferred choice for industries demanding precise and resilient welding solutions.
AWS Class ERNiCrMo-10 MIG and TIG Filler Welding Wire and Rod Made primarily of nickel (up to 60%, chromium (20.0-22.5%), molybdenum (12.5-14.5%), and trace amounts of other elements This alloy is good corrosion strength particularly resistant to harsh environments, high temperatures It also provides high strength and maintains good ductility and impact hardness The high chromium and molybdenum content increases pitting, cracking and corrosion resistance, making it ideal for welding high-strength, corrosion-resistant materials, including applications in the chemical and petrochemical industries.
| Classification | AWS A5.14, ERNiCrMo-10 |

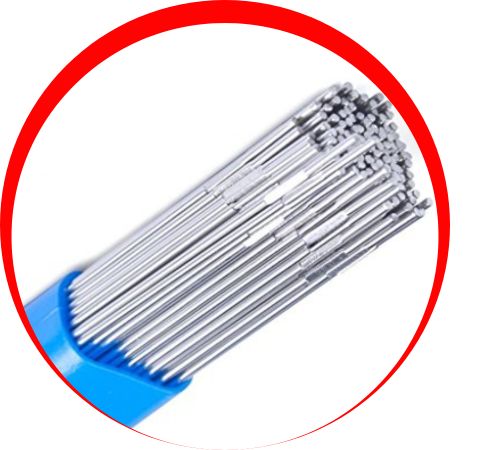

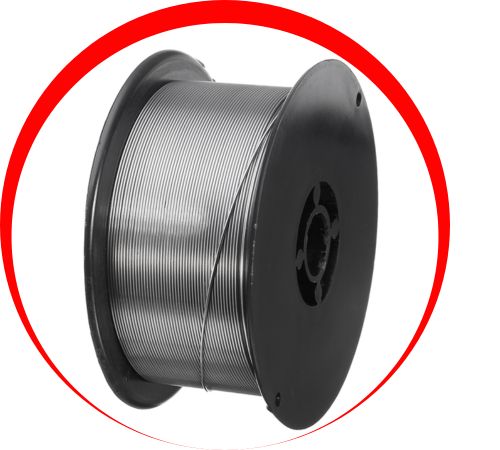

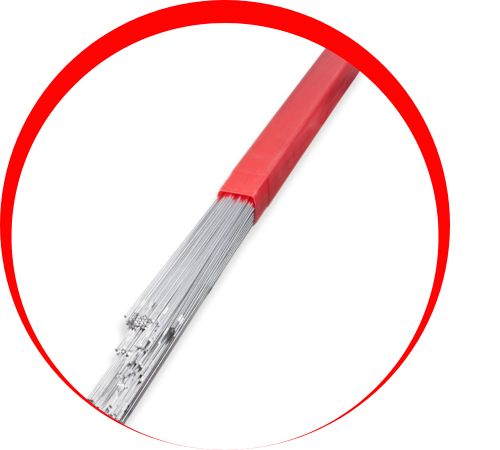

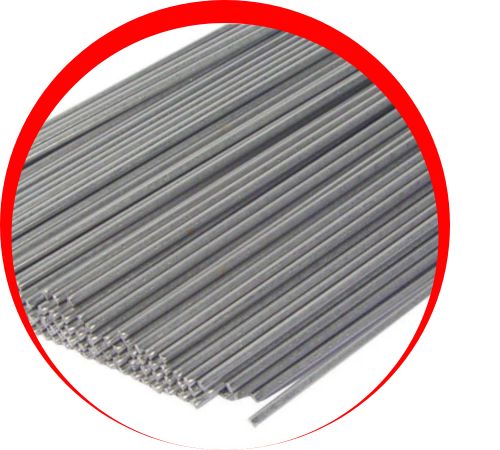

| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNiCrMo-10 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Fe | P | S | Si | Cu | Ni | Co | Cr | Mo | V | W | Other |
| 0.015 | 0.50 | 2.0-6.0 | 0.02 | 0.010 | 0.08 | 0.50 | Rem | 2.5 | 20.0-22.5 | 12.5-14.5 | 0.35 | 2.5-3.5 | 0.5 |
| Tensile (psi) | 100,000 |
|---|---|
| Mpa | 690 |
| Elongation (%) | 30 |
At Mehul Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERNiCrMo-10 MIG and TIG Filler Welding Wire and Rod in Dubai, UAE, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the UAE, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
AWS class ERNiCrMo-10 MIG and TIG Filler Welding Wire and Rod is widely used in applications requiring high corrosion resistance and high thermal properties. Ideal for welding nickel-chromium and molybdenum alloys including those found in chemical, petrochemical and marine environments. It is also used to combine different types of metals, including stainless steels and high-strength alloys. The high resistance to oxidation and erosion makes it suitable for critical applications in aerospace and power generation, as well as the repair and maintenance of high-performance products.
